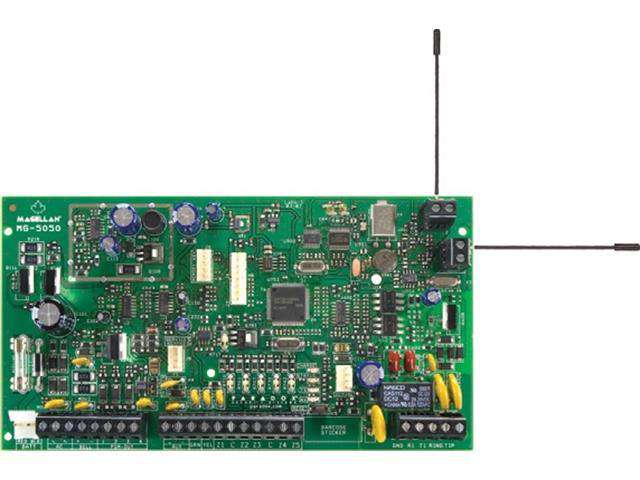

MG5050: Magellan 5 to 32-Zone Wireless Transceiver Control Panel
- Supports StayD
- Built-in transceiver (433 MHz)
- 32 zones (any of which can be wireless) and 2 partitions
- 32 users and 32 remote controls (1 per user)
- 4-wire communication bus (connect up to 15 keypads)
- 5 on-board hardwired zone inputs (4 with ATZ)
- Supports REM3, 8 K32RFs/K37s, 4 SR150s (see page 36), and 2 RPT1s (see page 40)
- Supports reporting (PCS series), IP (IP100), and voice modules (VDMP3)
- Supports 16 PGMs (any of which can be wireless) and 4 on-board PGMs
- In-field firmware upgradable via 307USB
- Menu-driven programming for the Installer, Master, and Maintenance codes
- Phone #s: 3 monitoring, 5 for personal dialing, and 1 for pager
- Patented 2-optocoupler dialer circuit – the most reliable dialer in the industry
- Push-button power reset
- RF Jamming Supervision
- 9.6K baud communication with WinLoad
- 256 events buffered
- Fits in a 20 x 25.5 x 7.6 cm (8 x 10 x 3 in.) metal box
