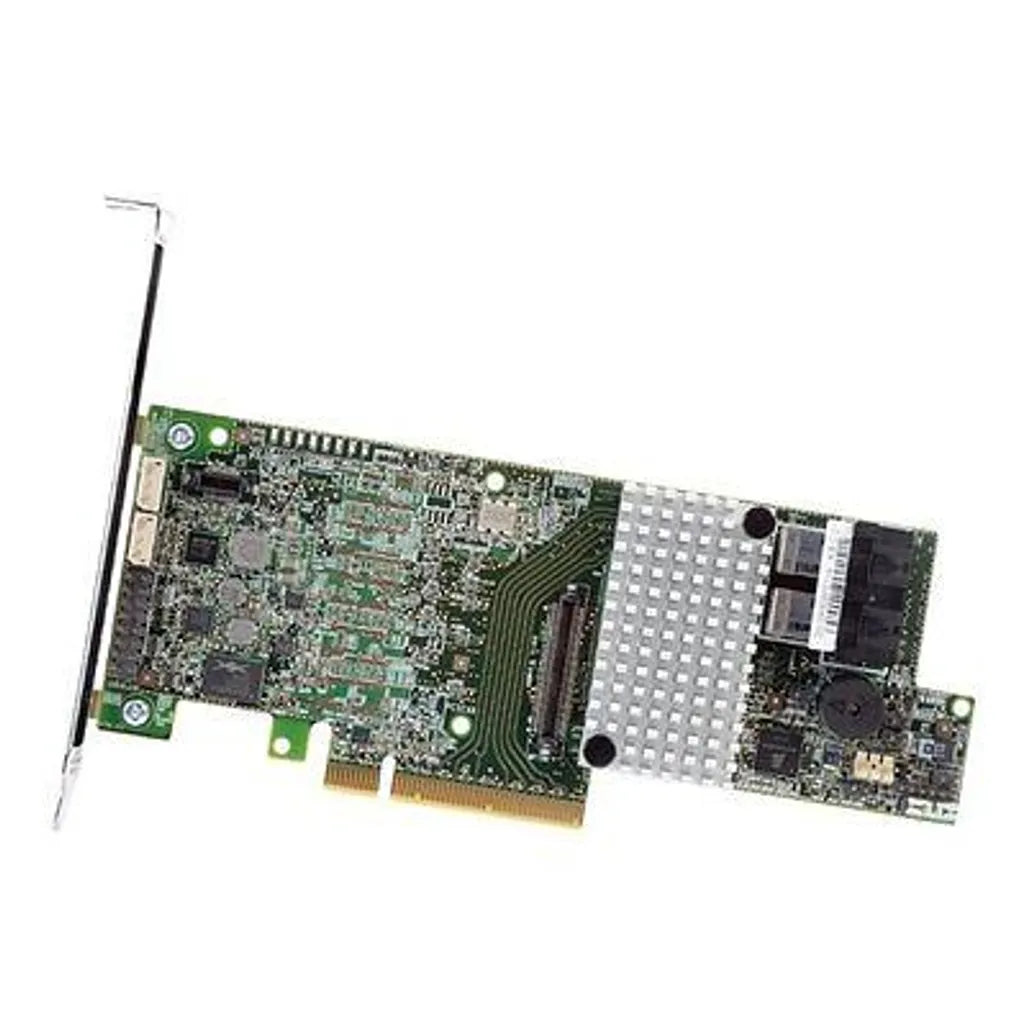

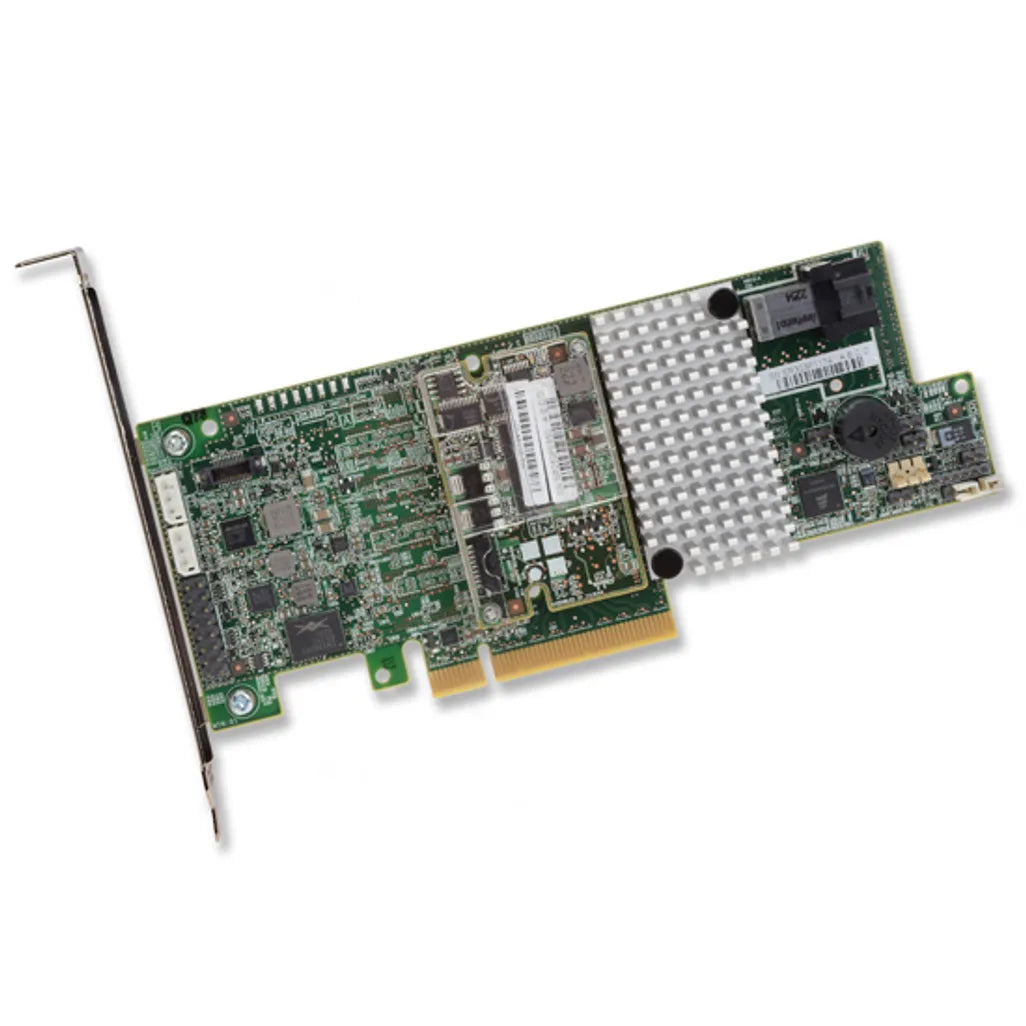

Intel RS3DC040. Supported storage drive interfaces: SAS,SAS-2,Serial ATA,Serial ATA II,Serial ATA III, Host interface: PCI Express x8, PCI Card form factor: Full-height (low-profile). RAID levels: 0, 1, 10, 5, 50, 6, 60, Data transfer rate: 12 Gbit/s, Form factor: Low Profile MD2 Card. Built-in processor: LSI3108, Processor frequency: 1200 MHz, Processor family: LSI. Voltage: 3.3 V. Bundled software: Intel RAID Web Console 2 Intel RAID Command Line Tool Intel RAID Flash Utilities, Packaging content: Raid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket.
Technical details
| Last change |
63903513 |
| Status |
Launched |
| Product type |
RAID |
| Launch date |
Q3'13 |
| Expected discontinuance date |
Q2'23 |
| Last order date |
2019-08-03 05:00:37 |
| Born on date |
Q3'13 |
| Product name |
Intel RAID Controller RS3DC040 |
| Target market |
Mainstream |
| Data transfer rate |
12288 |
| PCI Express host interface |
PCIe x8 Gen3 |
| RAID connector orientation |
Side |
Other features
| Market segment |
SRV |
| RAID ARK ID |
77347 |
| Supported devices |
SAS/SATA |
| Internal ports |
4 |
Performance
| Compatible products |
Intel S2600GZ, S2600GL, S2600CP2, S2600CP4, S2600CP2IOC, S2600CP4IOC, R1304GL4DS9, R1208GZ4GS9, R1304GZ4GS9, R2208GZ4GS9, R2308GZ4GS9, R2312GZ4GS9, R2224GZ4GC4, R2312GZ4GC4, R1304GZ4GC, R1208GZ4GC, R1208GL4DS, R2208GZ4GC, R2308GZ4GC, R2208GL4GS, R2308GL4GS, P4308CP4MHEN, P4308CP4MHGC, R2308GL4DS9, R2208GL4DS9, R1208GZ4GCSAS, R2224GZ4GCSAS, R2312GZ4GCSAS, P4208CP4MHGC, AXXCBL730HDMS, AXXRMFBU4, XXCBL650MSMS |
| Internal memory |
1024 |
| RAID levels |
0, 1, 10, 5, 50, 6, 60 |
| Data transfer rate |
12 |
| Form factor |
Low Profile MD2 Card |
| Sustained data transfer rate (native) |
12288 |
| Internal memory type |
DDR3 |
| Number of devices supported |
128 |
| Connector orientation |
Side |
| Memory clock speed |
1866 |
| S.M.A.R.T. support |
Y |
Processor
| Processor family |
LSI |
| Processor frequency |
1200 |
| Processor model |
LSI3108 |
| Built-in processor |
LSI3108 |
Power
Packaging content
| Packaging content |
Raid Controller, Quick Start User Guide, 1 standard & 1 Low Profile bracket. |
| Bundled software |
Intel RAID Web Console 2\nIntel RAID Command Line Tool\nIntel RAID Flash Utilities |
Logistics data
| Harmonized System (HS) code |
8471801000 |
Ports & interfaces
| Host interface |
PCI Express x8 |
| Supported storage drive interfaces |
SAS,SAS-2,Serial ATA,Serial ATA II,Serial ATA III |
| PCI Card form factor |
Full-height (low-profile) |
| PCI Express slots version |
3.0 |
| Internal SAS ports |
4 |
