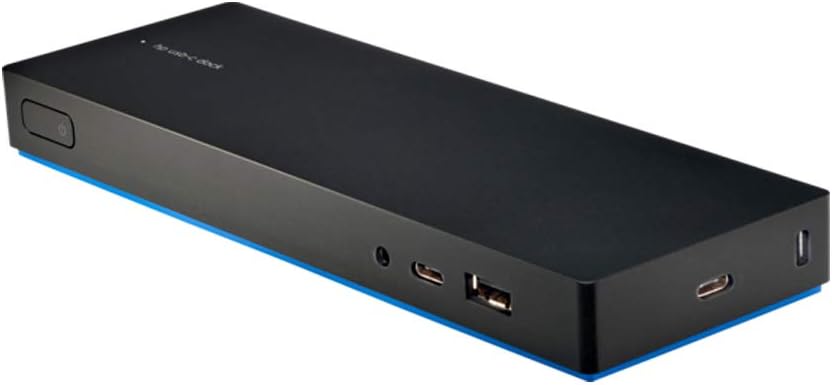

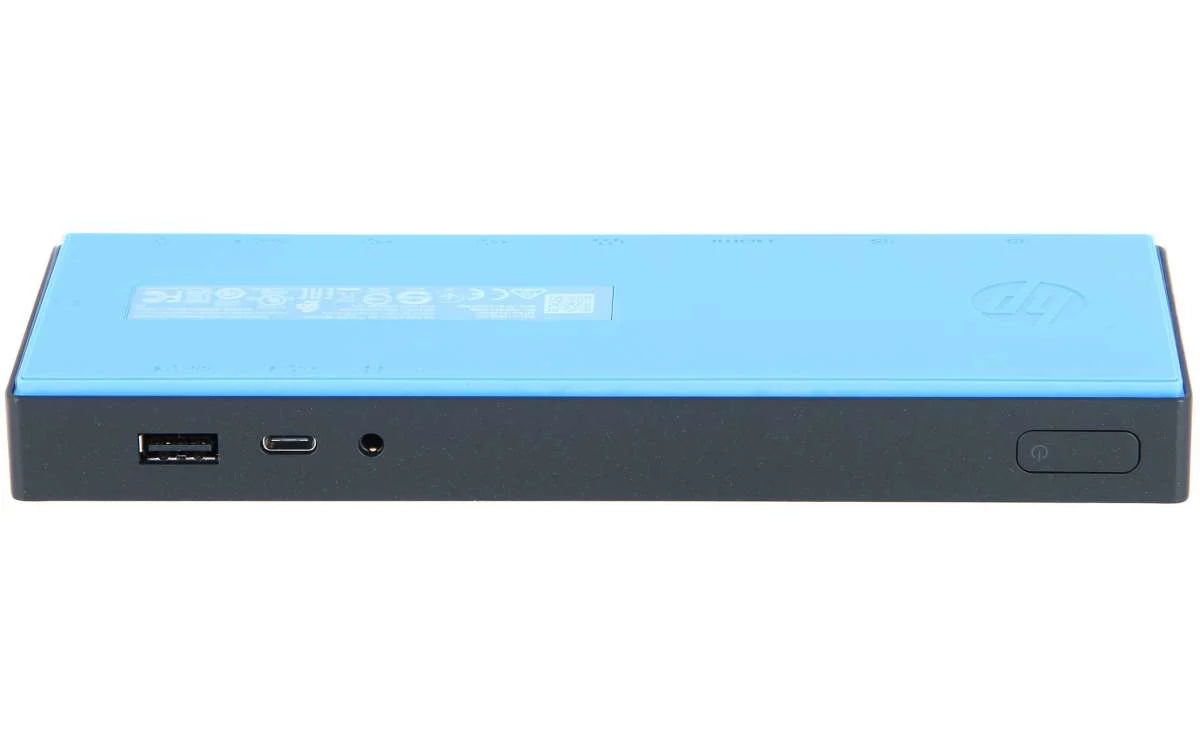

The HP Elite USB-C Dock G3 is a versatile docking station designed to enhance productivity by connecting your USB-C enabled HP laptops (and some other brands like MacBooks) to various peripherals, displays, and a wired network. A refurbished unit has been previously used but has been restored to a fully working condition.
Ports:
- 2 x USB-C ports (one for connecting to the computer, one for peripherals)
- 4 x USB 2.0 ports
- 2 x DisplayPort 1.2
- 1 x HDMI 2.0 port
- 1 x Gigabit Ethernet (RJ-45) port
- 1 x Combo audio jack (headphone/microphone)
- 1 x Smart AC adapter port
- 1 x Kensington lock slot
Display Support:
-
Single display: Up to 4096 x 2160 at 60 Hz (4K)
-
Dual displays: Up to 2560 x 1600 at 60 Hz (2K)
-
Triple displays: Up to 1920 x 1200 at 60 Hz (FHD)
- Higher resolutions at 60Hz may be supported using the "Hi-Res" button to enable 4-lane DisplayPort mode. The actual display configuration depends on your platform's video output capabilities.
Power Delivery:
- Supports USB-C PD 3.0 with power profiles of 5V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, and 20V/3A, up to 100W maximum power delivery.
- The dock itself has a normal operating power of 90W and an average operating power of 65W.
Compatibility:
The HP Elite USB-C Dock G3 is compatible with various HP laptops, including but not limited to:
- HP ChromeBook x360 11 G1 EE
- HP ZBook Studio G4 MWS, G3 MWS
- HP ZBook 17 G4, G3
- HP ZBook 15 G4, G3
- HP ProBook x360 11 G2 EE, G1 EE
- HP EliteBook x360 1030 G2
- HP Elite x3
- HP Elite x2 1012 G1
- HP EliteBook Folio G1
It is also mentioned to be compatible with MacBooks and other USB-C/Thunderbolt-equipped laptops.
Other Features:
- Network manageability features like PXE Boot, Wake on LAN, and MAC Address Pass Through.
- Security lock slot (Kensington).
- Driver-free operation.
