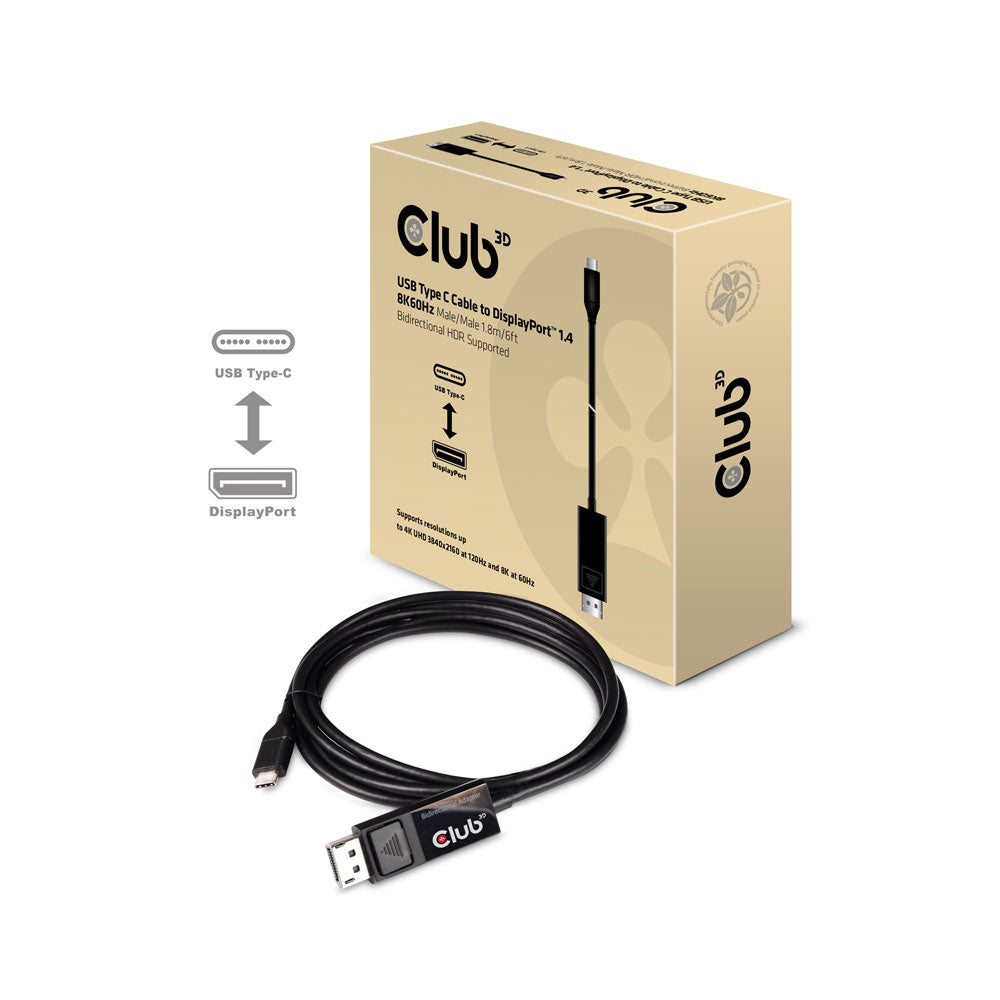

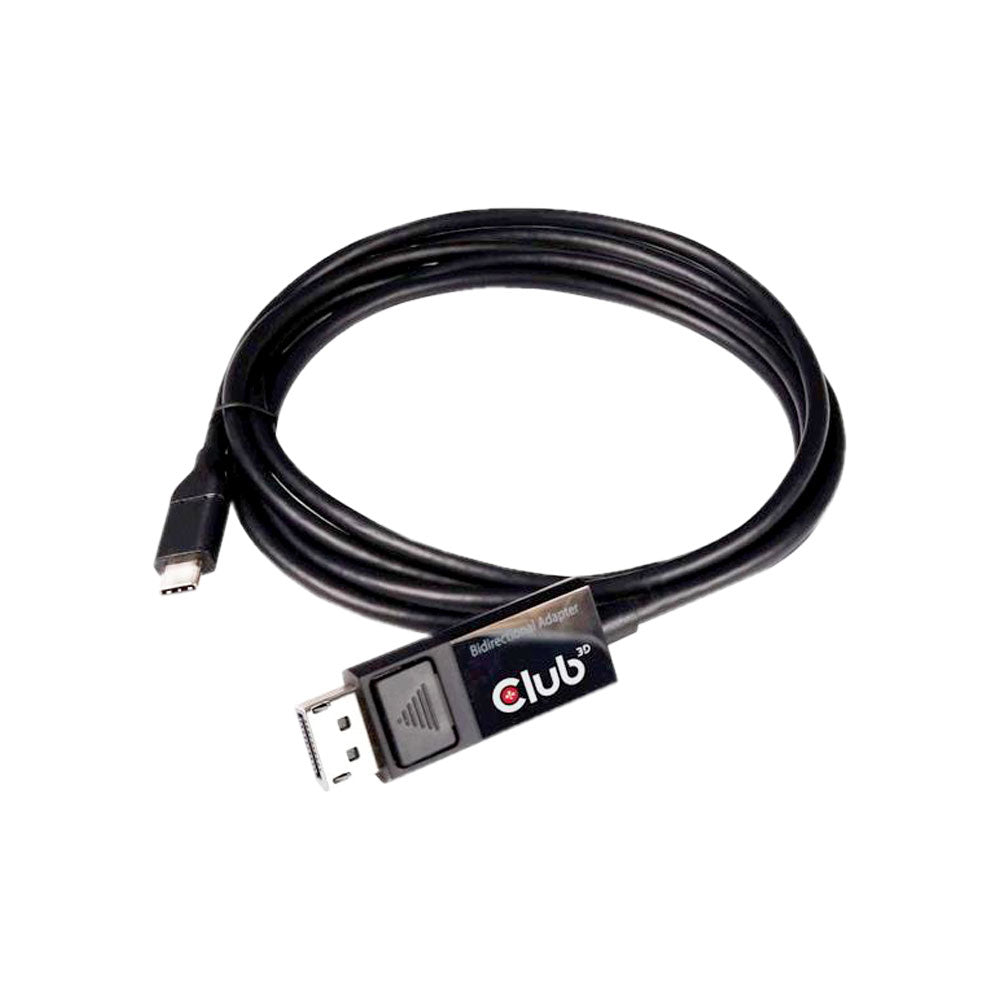

Club3D 1.8m USB Type-C to DisplayPort 1.4 8K Cable (CAC-1557)
The Club3D CAC-1557 is a DisplayPort™ signal converter. The USB Type C to DisplayPort™ 1.4 Cable is the easiest solution for connecting your USB Type C source device featuring DisplayPort™ Alternate Mode to a DisplayPort™ 1.4 Monitor, Television, or Projector and vice versa. Powered by the USB Type C port, the adapter requires no external power and is ideal for use with the latest notebooks / MacBook (pro) and Tablets.
Supports up to 4K UHD Resolution at 120Hz and 8K at 60Hz and HDR
The USB Type C to DisplayPort™ 1.4 Cable supports UHD resolutions up to 4K UHD @ 120Hz or 8K at 60Hz for a clear, sharp picture and HDR. The support for 120 frames per second provides exceptionally smooth video. Use the adapter to play games, view video, or browse the internet from your USB Type C or DP 1.4-enabled device on an ultra-high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video. Does not support Dual Mode DisplayPort™ (DP++)
Compatible with all Operating Systems
The USB Type C to DisplayPort™ 1.4 Cable supports all USB Type-C devices with DisplayPort™ ALT mode 1.4 and operating systems, including but not limited to Apple OS X, Windows 7, 8.1, and 10, and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
Features:
• Reversible USB Type-C connector
• Compliant to VESA DisplayPort™ Alt Mode 1.4 Standard
• Supports full link training and no link training
• Supports (U)HD resolutions up to 3840 x 2160p @ 120Hz and 8K@60Hz
• Supports 3D Video formats up to 1080p @ 120Hz
• Powered by USB Port (no external power needed)
• Powered by USB Port (no external power needed)
• The cable is bidirectional
To Support this maximum resolution the source device must support USB C DisplayPort Alt Mode 1.4 - Please consult with your device manufacturer for this specification. For Example, the Nvidia RTX series will support this standard.
OS Support:
Apple OS X
Microsoft Windows
Google Chrome OS
Input:
• USB Type C Male
Output:
• DisplayPort™ 1.4 male
Other info:
• Box size: 14.5 X 14.5 x 4.5 cm.
• Cable: 180 x 2.2 x 1.0 cm.
• Weight: 70 gr.
• ESD bag: 6 gr.
• Retail box including cable and ESD, 124gr.
• Meets ROHS, FCC, and CE EMI requirements
