Network
| Wi-Fi | Y |
|---|---|
| Ethernet LAN | Y |
| Bluetooth | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.2 |
Weight & dimensions
| Width | 305 |
|---|---|
| Depth | 244 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Supported processor sockets | LGA 1700 |
Memory
| Maximum internal memory | 128 |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Non-ECC | Y |
| Unbuffered memory | Y |
| Memory channels | Dual-channel |
Graphics
| Parallel processing technology support | Not supported |
|---|
Features
| Component for | PC |
|---|---|
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 |
| Windows operating systems supported | Windows 10,Windows 11 |
| Motherboard chipset | Intel B760 |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Y |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 1 |
|---|---|
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| Number of chassis fan connectors | 4 |

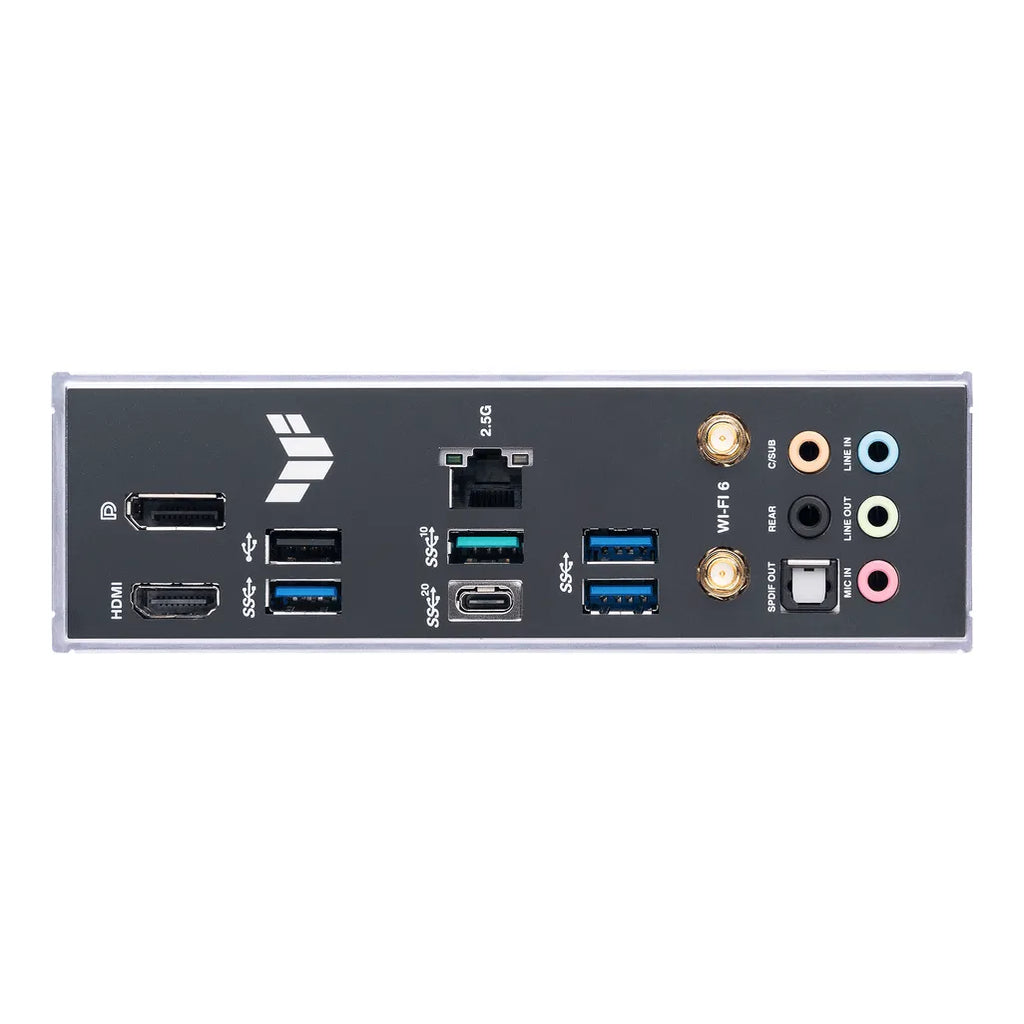

Rear panel I/O ports
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| S/PDIF out port | Y |
| WiFi-AP antenna jack | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Y |
Storage controllers
| RAID levels | 0,1,5,10 |
|---|---|
| RAID support | Y |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 7 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 128 |
Packaging data
| Package depth | 76 |
|---|---|
| Package height | 266 |
| Package weight | 1983 |
| Package width | 331 |
