Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen

The Asus TUF Gaming B650M-E motherboard delivers the ideal balance of durability, performance, and next-gen connectivity for gamers and creators deploying AMD Ryzen 7000 Series processors. Engineered with military-grade components and enhanced power architecture, the board features an 8+2 power stage configuration rated at 60A, supported by enlarged VRM heatsinks to ensure unwavering stability under heavy workloads and marathon gaming sessions.

Optimised for speed, the ASUS TUF Gaming B650M supports PCIe® 5.0 M.2 slots and next-generation DDR5 memory, allowing users to unlock ultra-fast data access and seamless multitasking. With native support for USB 3.2 Gen 2 Type-C® and front-panel USB 3.2 Gen 1 Type-C®, connectivity is efficient and future-ready. Integrated WiFi 6 and 2.5 Gb Ethernet ensure stable, low-latency online performance for competitive gaming and high-speed transfers.

The Asus TUF Gaming B650M-E is designed to outlast and outperform. Every unit undergoes rigorous validation, including thermal shock, humidity, and voltage fluctuation testing, making it a reliable choice for demanding environments. The rugged, geometric off-black aesthetic further reinforces the TUF identity – built to perform, built to endure. Whether you’re building a compact battle station or a high-performance rig, the Asus TUF Gaming B650M-E empowers your build with exceptional stability, robust performance, and enduring style.

FEATURES:

• Built for AMD Ryzen 7000 series to deliver high-end performance and efficiency
• 8+2 power stages (60A rated) ensure stable power delivery
• PCIe® 5.0 M.2 slot offers ultra-fast storage speeds with support for next-gen NVMe SSDs
• DDR5 memory support provides enhanced bandwidth and improved power efficiency
• Wi-Fi 6 & 2.5 Gb Ethernet, reliable low-latency networking
• USB 3.2 Gen 2 Type-C® back and front panel connectivity
• Two-way AI noise cancellation minimises background noise
• Enlarged VRM heatsinks and hybrid fan headers maintain system temperatures during intense operation
• TUF durability testing for thermal, voltage, and environmental endurance
• Off-black PCB with geometric accents reflects the strength and dependability of the TUF series

SPECIFICATIONS:

• CPU:
• Chipset: AMD B650
• CPU Compatibility: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• CPU Socket: LGA1700
• Memory Support:
  • 4 x DIMM slots, up to 192GB total
  • DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
  • Dual-Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
• Graphics:
  • 1 x DisplayPort
  • 1 x HDMI™port
• Expansion Slots:
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • 1 x PCIe 4.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD B650 Chipset
    • 2 x PCIe 4.0 x1 slots
• Storage:
• Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
• AMD B650 Chipset
  • 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard
• Wireless & Bluetooth:
  • 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Bluetooth® v5.2 (2.4/5GHz)
• USB:
  • Rear USB (Total 8 ports)
    • 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
    • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
    • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
    • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
• Back Panel I/O Ports:
  • 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
  • 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 2 x DisplayPort
  • 1 x HDMITM port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™  button
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 2 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
    • 1 x 4-pin +12V Power connector
  • Storage related
    • 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
    • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Aura RGB header
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (AAFP)
    • 1 x 20-3-pin System Panel header with Chassis intrude function
• Special Features:
  • ASUS TUF PROTECTION
    • DIGI+ VRM (- Digital power design with DrMOS)
    • ESD Guards
    • TUF LANGuard
    • Overvoltage Protection
    • SafeSlot Core+
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsinks
    • VRM heatsink design
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • ProCool
    • Pre-mounted I/O shield
    • SafeSlot Core+
    • SafeDIMM
  • AURA Sync
    • Aura RGB header
    • Addressable Gen 2 headers
• Software Features:
  • ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
    • Fan Xpert 2+
    • Power Saving
    • Two-Way AI Noise Cancellation
  • AI Suite 3
    • TurboV EVO
    • DIGI+ VRM
    • PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyASUS
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor:
• Form Factor: mATX (micro-ATX)
  • Dimensions: (24.4 x 24.4 cm)

WHAT'S IN THE BOX:

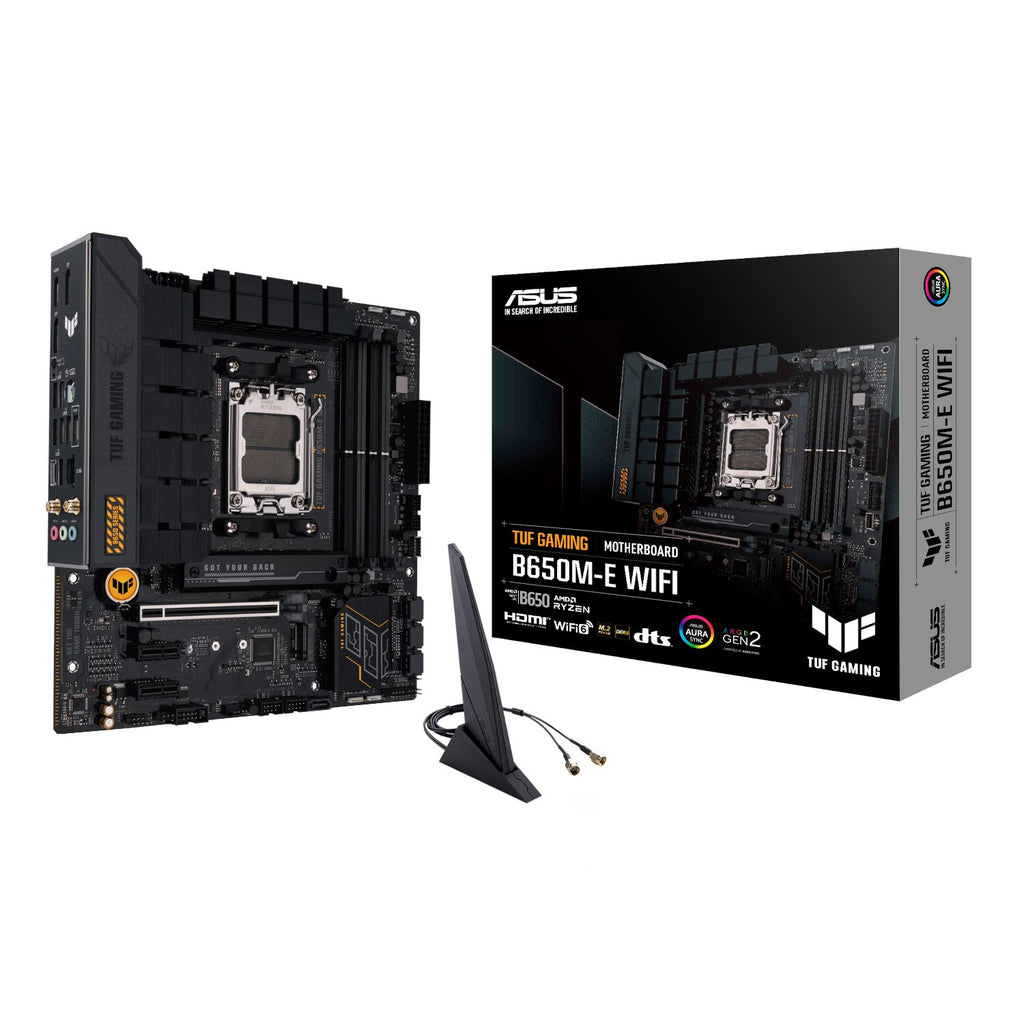

• Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen x1
• SATA 6Gb/s cables  x2
• ASUS Wi-Fi moving antennas x1
• TUF Gaming sticker x1
• M.2 Rubber Package x1
• Screw package for M.2 SSD x1
• TUF Certification card x1
• User guide x1
