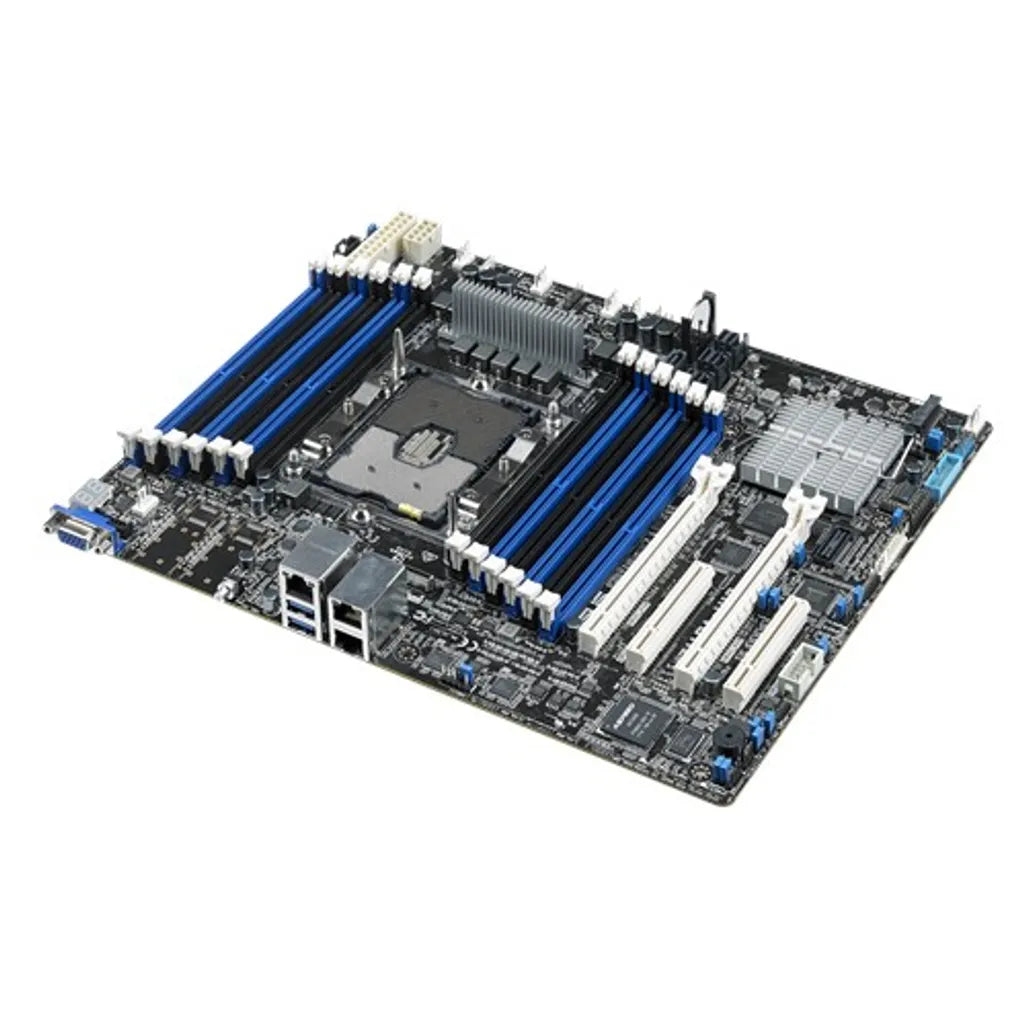

ASUS Svr MB; INTEL; C621/LGA 3647; 1S; ATX; 12DIMM; PCIe;13
Network
| Wi-Fi |
N |
| Ethernet LAN |
Y |
| LAN controller |
Intel I210-AT |
Weight & dimensions
Processor
| Processor socket |
LGA 3647 |
| Processor manufacturer |
Intel |
| Number of processors supported |
1 |
| Compatible processor series |
Intel Xeon |
| Processor socket |
LGA 3647 (Socket P) |
| Supported QPI |
10.4 |
Memory
| Maximum internal memory |
1536 |
| Supported memory types |
DDR4-SDRAM |
| Supported memory clock speeds |
2400,2666 |
| Memory channels |
Hexa-channel |
| Supported RDIMM module capacity |
4GB,8GB,16GB,32GB |
| Supported LRDIMM module capacity |
32GB,64GB |
| Supported DIMM module capacities |
4GB,8GB,16GB,32GB,64GB |
| Supported RDIMM clock speeds |
2400,2666 |
| Supported LRDIMM clock speeds |
2400,2666 |
| Number of DIMM slots |
12 |
| Maximum RDIMM memory |
384 |
| Maximum UDIMM memory |
768 |
Graphics
| On-board graphics adapter memory |
64 |
| Discrete graphics support |
Y |
| Parallel processing technology support |
Not supported |
| On-board graphics adapter model |
Aspeed AST2500 |
Features
| Component for |
Server |
| Motherboard form factor |
ATX |
| Motherboard chipset |
Intel C621 |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
2 |
Operational conditions
| Operating temperature (T-T) |
10 - 35 |
| Storage temperature (T-T) |
-40 - 70 |
| Storage relative humidity (H-H) |
20 - 90 |
Internal I/O
| Serial port headers |
1 |
| TPM connector |
Y |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| EPS power connector (8-pin) |
Y |
| Number of SATA III connectors |
13 |
| Integrated SAS ports |
2 |
Rear panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
3 |
Storage controllers
| RAID levels |
0,1,5,10 |
| RAID support |
Y |
| HDD interface |
Serial ATA III,Serial Attached SCSI (SAS) |
| Supported storage drive interfaces |
Serial Attached SCSI (SAS) |
Other features
| Number of processors supported |
1 |
| Number of DIMM slots |
12 |
| PCI Express x8 (Gen 3.x) slots |
2 |
| Weight |
970 |
| Package weight |
1625 |
| Supported DIMM module capacities |
4GB,8GB,16GB,32GB,64GB |
| Maximum UDIMM memory |
768 |
| Supported LRDIMM module capacity |
32GB,64GB |
| Supported LRDIMM clock speeds |
2400,2666 |
| Supported RDIMM clock speeds |
2400,2666 |
| Supported RDIMM module capacity |
4GB,8GB,16GB,32GB |
