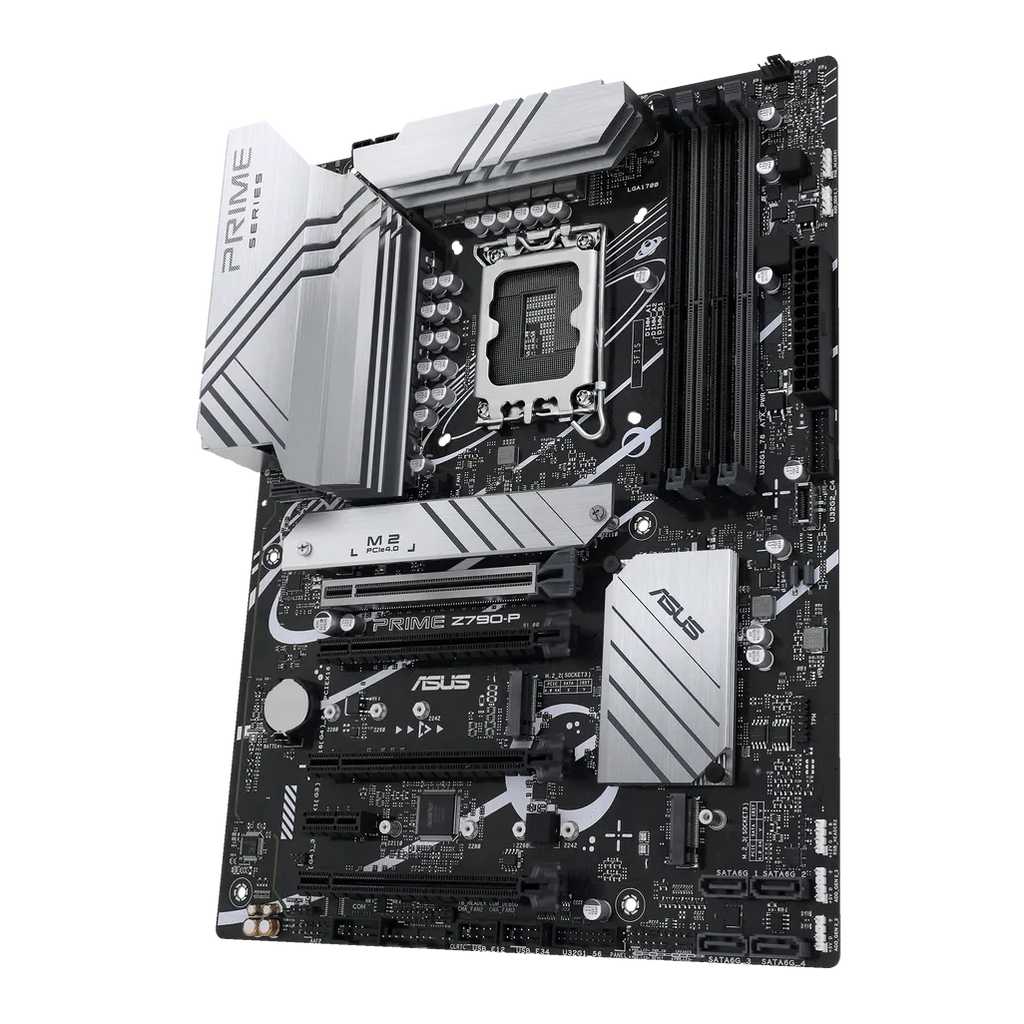

ASUS PRIME Z790-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Network
| Wi-Fi |
Y |
| Ethernet LAN |
Y |
| Ethernet interface type |
2.5 Gigabit Ethernet |
Weight & dimensions
Processor
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Compatible processor series |
Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Supported processor sockets |
LGA 1700 |
Memory
| Maximum internal memory |
128 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Memory channels |
Dual-channel |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 |
| Supported memory clock speed (max) |
7200 |
Graphics
| Parallel processing technology support |
Not supported |
Features
| Component for |
PC |
| Motherboard form factor |
ATX |
| Power source type |
ATX |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 |
| Windows operating systems supported |
Windows 10 x64,Windows 11 |
| Motherboard chipset |
Intel Z790 |
Packaging content
| Cables included |
SATA |
| Drivers included |
Y |
Packaging data
| Package height |
68 |
| Package depth |
273 |
| Package width |
338 |
| Package weight |
1581 |
Expansion slots
| Number of M.2 (M) slots |
3 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of chassis fan connectors |
3 |
| TPM connector |
Y |
| Number of SATA III connectors |
4 |
| S/PDIF out connector |
Y |
| Front panel audio connector |
Y |
| ATX Power connector (24-pin) |
Y |
| CPU fan connector |
Y |
| EPS power connector (8-pin) |
Y |
| 12V power connector |
Y |
| RGB LED pin header |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of COM connectors |
1 |
| Thunderbolt headers |
1 |
Rear panel I/O ports
| USB 2.0 ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Line-in |
Y |
Storage controllers
| RAID levels |
0,1,5,10 |
| RAID support |
Y |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2,SATA III |
BIOS
| BIOS type |
UEFI AMI |
| Clear CMOS button |
Y |
| BIOS memory size |
192 |
Other features
| Number of M.2 (E) slots |
1 |
