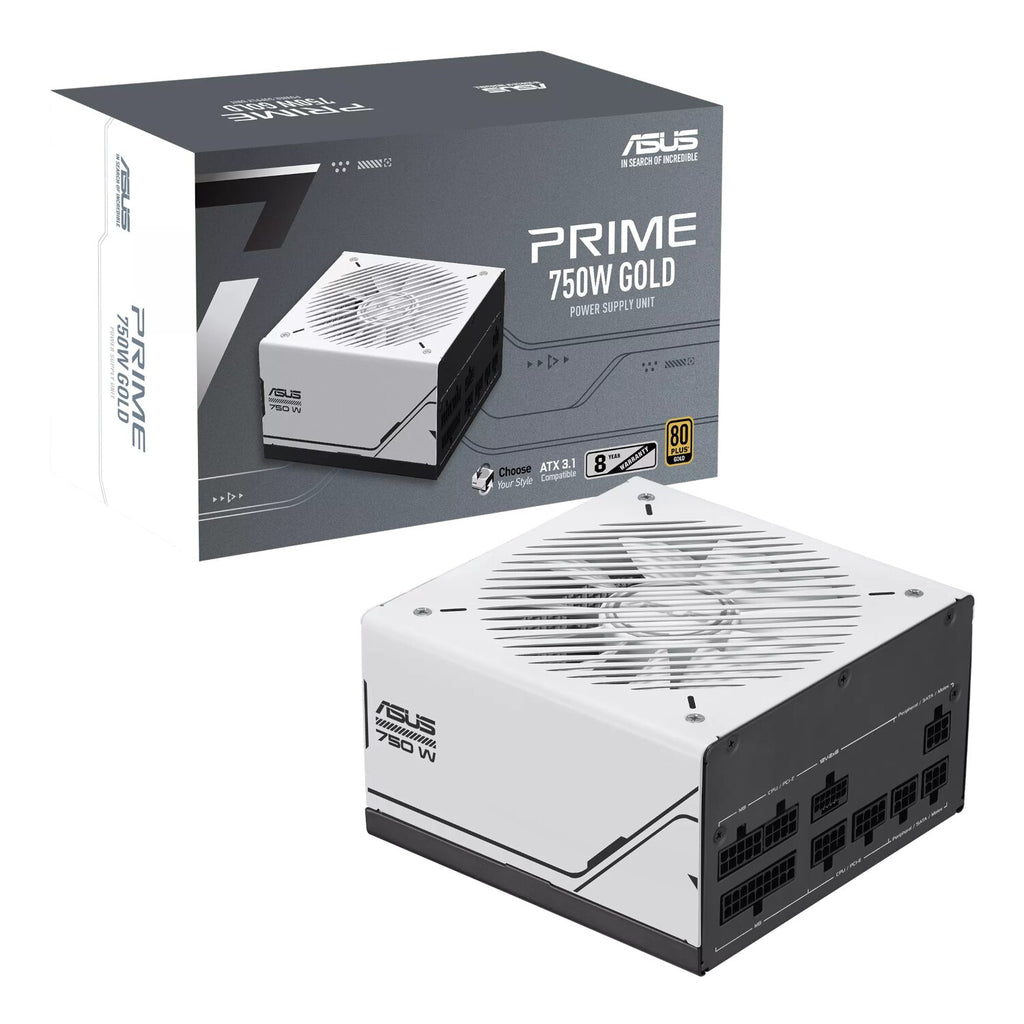

Engineered for demanding gaming environments, the ASUS Prime 750W Power Supply Unit delivers robust performance, superior reliability, and future-ready compliance. Built on the ATX 3.1 standard and supporting the latest PCIe 5.0 specification, it’s the ideal choice for powering high-performance gaming rigs and enthusiast-grade components.
This power supply offers 750W of continuous power with 80 PLUS Gold efficiency, reducing energy waste and thermal output. The ASUS Prime 750W Power Supply features Active PFC, and premium internal components including 105°C Japanese capacitors, ensuring stable output and a long lifespan rated at over 120,000 hours at 25°C.
Connectivity is comprehensive, with one 24/20-pin motherboard connector, dual 4+4-pin CPU connectors, three 8-pin PCI-E, and one native 16-pin PCIe Gen 5.1 cable — ready to power the latest GPUs. Additional SATA and peripheral connectors support a range of storage devices and legacy hardware. Its fully modular cable design enables optimal airflow and cleaner aesthetics, while integrated safeguards such as OPP, OVP, UVP, SCP, OCP, and OTP provide peace of mind during peak usage.
Compact at just 15 x 15 x 8.6 Cm and weighing 1466 g, the ASUS Prime 750W Power Supply fits easily into most chassis. Built for serious gamers, it offers power you can trust with the performance you demand.
FEATURES:
- 750W continuous power output with 80 PLUS Gold efficiency for optimised energy use and lower heat
- Fully modular cable design for cleaner builds and improved airflow
- PCIe Gen 5.1 16-pin connector supports high-performance GPUs and next-gen graphics cards
- Built to ATX 3.1 and PCIe 5.0 standards for future-ready system compatibility
- Premium Japanese capacitors rated for 105°C ensure enhanced durability and stability
- 135mm dual ball bearing fan delivers consistent cooling under heavy gaming loads
- Comprehensive power protection with OPP, OVP, UVP, SCP, OCP, and OTP safeguards
- Compact ATX form factor (150 x 150 x 86 mm) fits most mainstream and custom gaming chassis
SPECIFICATIONS:
- Intel Form Factor: ATX12V
- PFC Type: Active PFC
- ATX Standard: ATX 3.1
- Efficiency: 80Plus Gold
- MTBF: >120,000 hrs @ 25°C
- Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials: ROHS
- AC Input Range: 100-240Vac
- DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
- Maximum Load: 20A20A62A 0.3A 2.5A
- Combined Load: 110W 110W 744W 3.6W 12.5W
- Total Output: 750W
- Cable Connectors:
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (both PSU & connector side)
- PCI-E 8-pin x 3
- SATA x 5
- PERIPHERAL x 3
- 0dB Technology: No
- 0dB Fan Button: No, this product is without 0dB technology
- Dimensions: 15 x 15 x 8.6 Cm
- Weight: 1466 g (single PSU)
WHAT'S IN THE BOX:
- ASUS Prime AP-750G 750W 80+ Gold Fully Modular ATX3.1 Power Supply X1
- Power Cord x 1
- Motherboard Power Cable x 1
- CPU Cable x 2
- PCI-E Gen 5.1 16-pin Cable x 1
- PCI-E (16-pin to 8-pin-8-pin) Cable x1
- PCI-E 1-to-1 Cable x 1
- SATA 1-to-2 Cable x 1
- SATA 1-to-3 Cable x 1
- Peripheral 1-to-3 Cable x 1
- User Manual x 1
