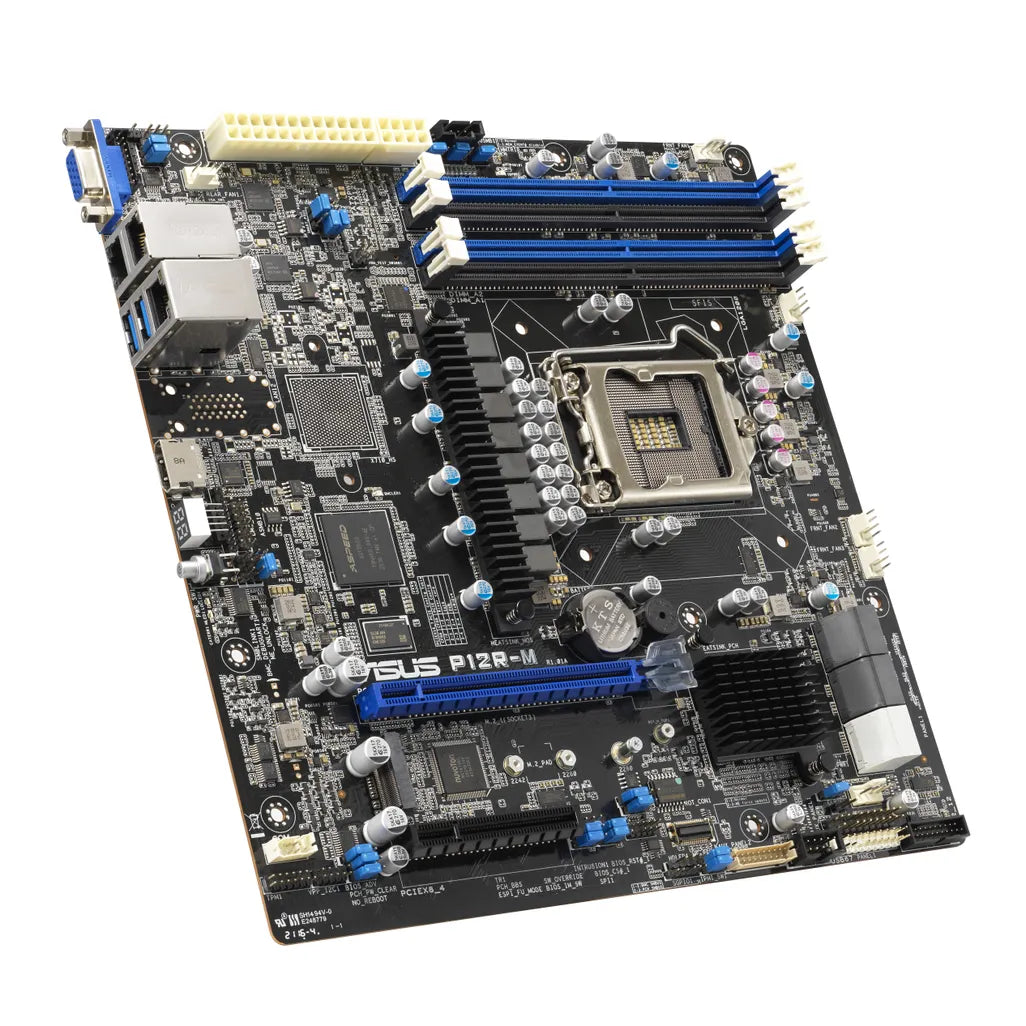

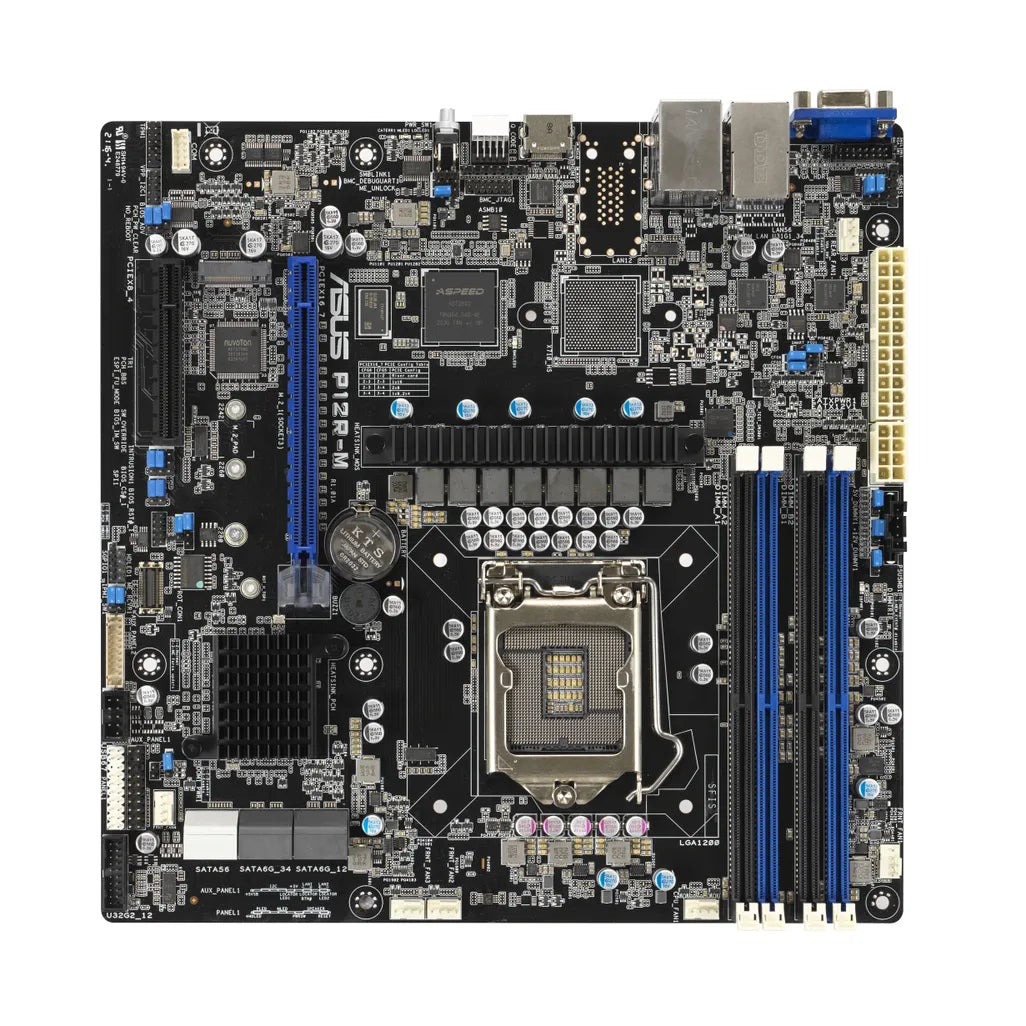

ASUS P12R-M. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: ASPEED, Graphics card: AST2600, On-board graphics card memory: 64 MB. LAN controller: Intel® I210-AT
Network
| Wi-Fi |
N |
| Ethernet LAN |
Y |
| LAN controller |
Intel I210-AT |
Weight & dimensions
Processor
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1200 (Socket H5) |
| Compatible processor series |
Intel Pentium,Intel Xeon E |
Memory
| Maximum internal memory |
128 |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
2666,2933,3200 |
| Supported memory module capacities |
4GB,8GB,16GB,32GB |
Features
| Component for |
Server |
| Quantity |
1 |
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel C252 |
Expansion slots
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 |
| Storage relative humidity (H-H) |
20 - 90 |
| Operating temperature (T-T) |
10 - 50 |
Internal I/O
| Serial port headers |
1 |
| Number of SATA III connectors |
6 |
| ATX Power connector (24-pin) |
Y |
| EPS power connector (8-pin) |
Y |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
2 |

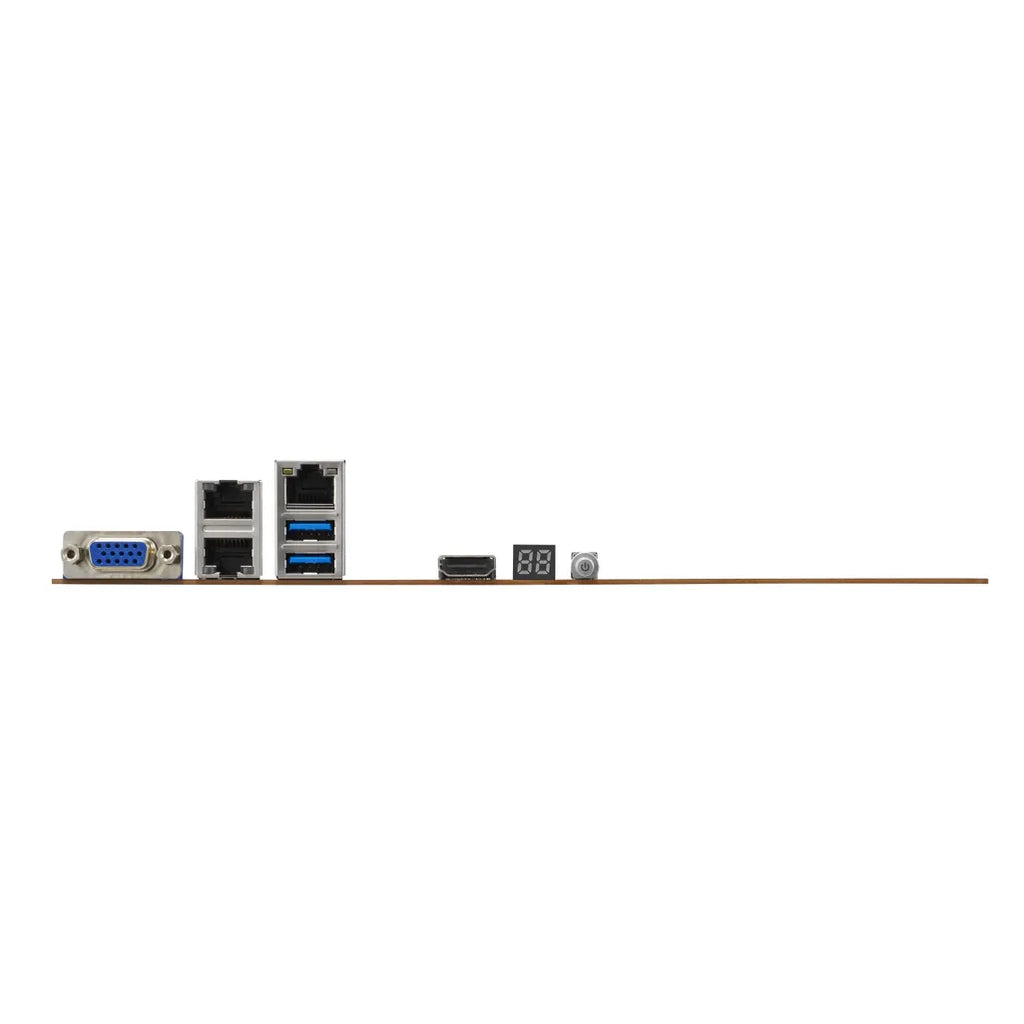

Rear panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
Storage controllers
| Supported storage drive interfaces |
M.2,SATA III |
Logistics data
| Harmonized System (HS) code |
84733020 |
Graphics
| On-board graphics card memory |
64 |
| Graphics card |
AST2600 |
| Graphics card family |
ASPEED |
