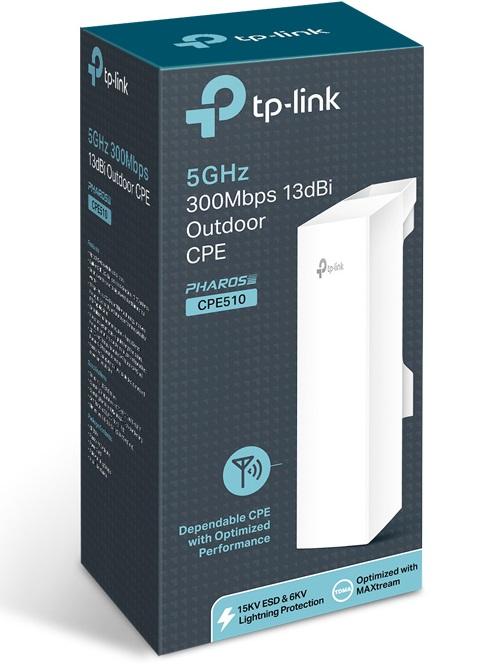

TL-CPE510 5GHz 300Mbps 13dBi Outdoor CPE - High-Performance Long-Range Wireless Solution
The TL-CPE510 is a high-performance outdoor CPE designed for long-range wireless networking applications. With a built-in 13dBi dual-polarized directional MIMO antenna and adjustable transmission power, it ensures reliable and efficient data transmission over distances exceeding 15km. Ideal for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage, the TL-CPE510 is equipped with Qualcomm Atheros enterprise-level chipsets and a robust enclosure to withstand harsh outdoor environments.
Key Features:
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications:
-
Model: TL-CPE510
-
Frequency: 5GHz
-
Data Rate: Up to 300Mbps
-
Antenna: Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
-
Transmission Power: Adjustable from 0 to 26dBm/200mw
-
Range: Over 15km
-
Operation Modes: AP / Client / AP Router / AP Client Router (WISP)
-
Management: Centralized management via Pharos Control
-
Power Supply: Passive PoE Adapter (supports up to 60 meters)
-
Operating Temperature: -30? to +70?
-
Dimensions: 224 x 79 x 60 mm
-
Weight: 0.58 kg
-
Certifications: CE, FCC, RoHS
