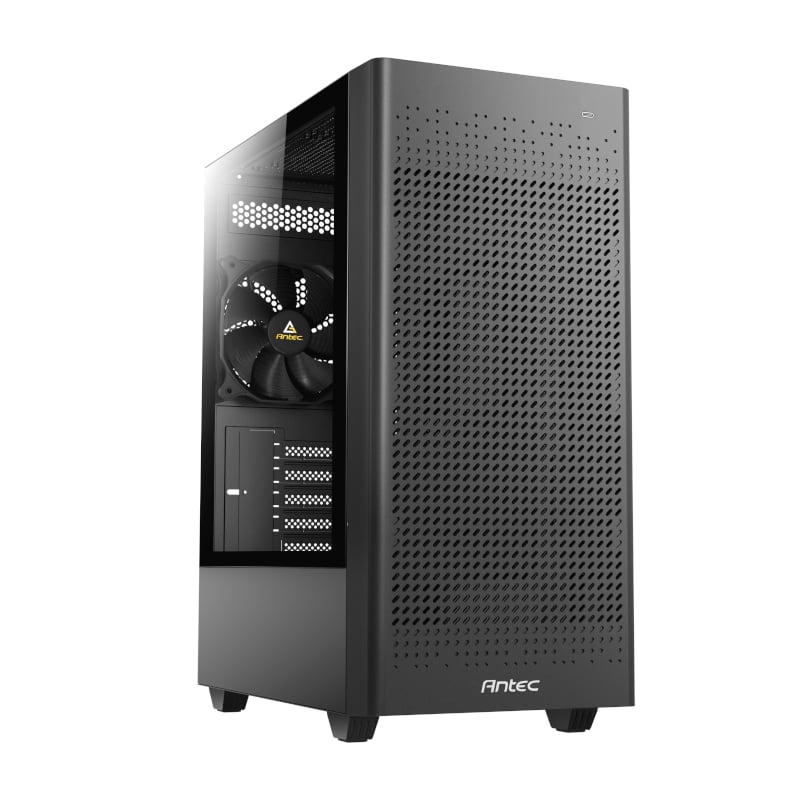

The Antec NX500M is a one-of-a-kind Gaming Chassis with exceptional cooling performance. It has a tempered glass side panel for displaying your hardware, can accommodate up to six 120mm fans, and provides efficient ventilation with minimal dust intake. The case has a Type-C connection for convenience, 20mm cable management space, and the ability to display customised hardware and unique water-cooling systems. The removable HDD drive cage expands PSU installation space, allowing for PSUs up to 165mm with the cage and up to 325mm without. A big vented air inlet in the front allows for plenty of ventilation ensuring a cool and steady gaming experience.
FEATURES:
- Powerful Heat Dissipation
- Tempered Side Glass Panel
- Unique Front Vented Design
- m-ATX and ITX Motherboard Support
- Top and Bottom Magnetic Dust Filters
SPECIFICATIONS:
- Form Factor: Mini Tower
- Materials: Steel + Plastic
- Mainboard Support: Micro-ATX, ITX
- Front Access & Controls: Power, LED control button, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
- Side Panel: Tempered Glass
- Drive Bays: Expansion Slots: 5
- Fan Support:
- Front: 3 x 120mm / 2 X 140mm
- Top: 2 x 120mm/2 x 140mm
- Power Supply Shroud: 2 x 120mm
- Rear: 1 x 120mm
- Included Fan:
- 1 x 120mm fan in rear
- Radiator Support:
- Front: 120/140/240/280/360 (Length≤397mm)mm
- Top: 120 / 240mm
- Rear: 120mm
- Clearance:
- Max GPU Length: ≤ 300mm(with front fan), ≤ 320mm(without front fan)
- Max CPU Cooler Height: ≤ 155mm
- Max PSU Length: ≤ 165mm(with HDD), ≤ 325mm(without HDD)
- Dust Filter: Top / Bottom
- Product Dimensions: 48 x 20 x 45 cm
- Product Weight: 4000g
WHAT’S IN THE BOX:
- Antec NX500M m-ATX Gaming Chassis – Black x1
